Small Dry Mortar Mixer Machine
Compact horizontal ribbon mixer for putty powder, plastering mortar, tile adhesive starter production and other dry powder mixing applications.
Compact Mixer for Starter Production
This mixer can be sold as a standalone machine or used as the core mixing unit of a small dry mortar production line.
Uniform Mixing
Horizontal ribbon structure moves powders in multiple directions to improve mixing uniformity in a short cycle.
Easy Feeding
Screw elevator feeding option helps reduce manual lifting and makes operation easier for small workshops.
Easy Cleaning
Bottom discharge and cleaning access help operators switch products and maintain the machine more easily.
Suitable Materials and Applications
The machine is suitable for building material powders and dry mortar starter production.
Mortar Products
Wall putty, skim coat, plastering mortar, tile adhesive starter production and repair mortar.
Powder Materials
Cement, sand, fly ash, calcium powder, talc powder and other dry powder materials.
Workshop Use
Small construction material plants, local building material suppliers and formula testing workshops.
Product Photos & Selection Details
The compact mixer is suitable for starter production, test batches and small workshops where layout and batch size must stay practical.
Main Reference

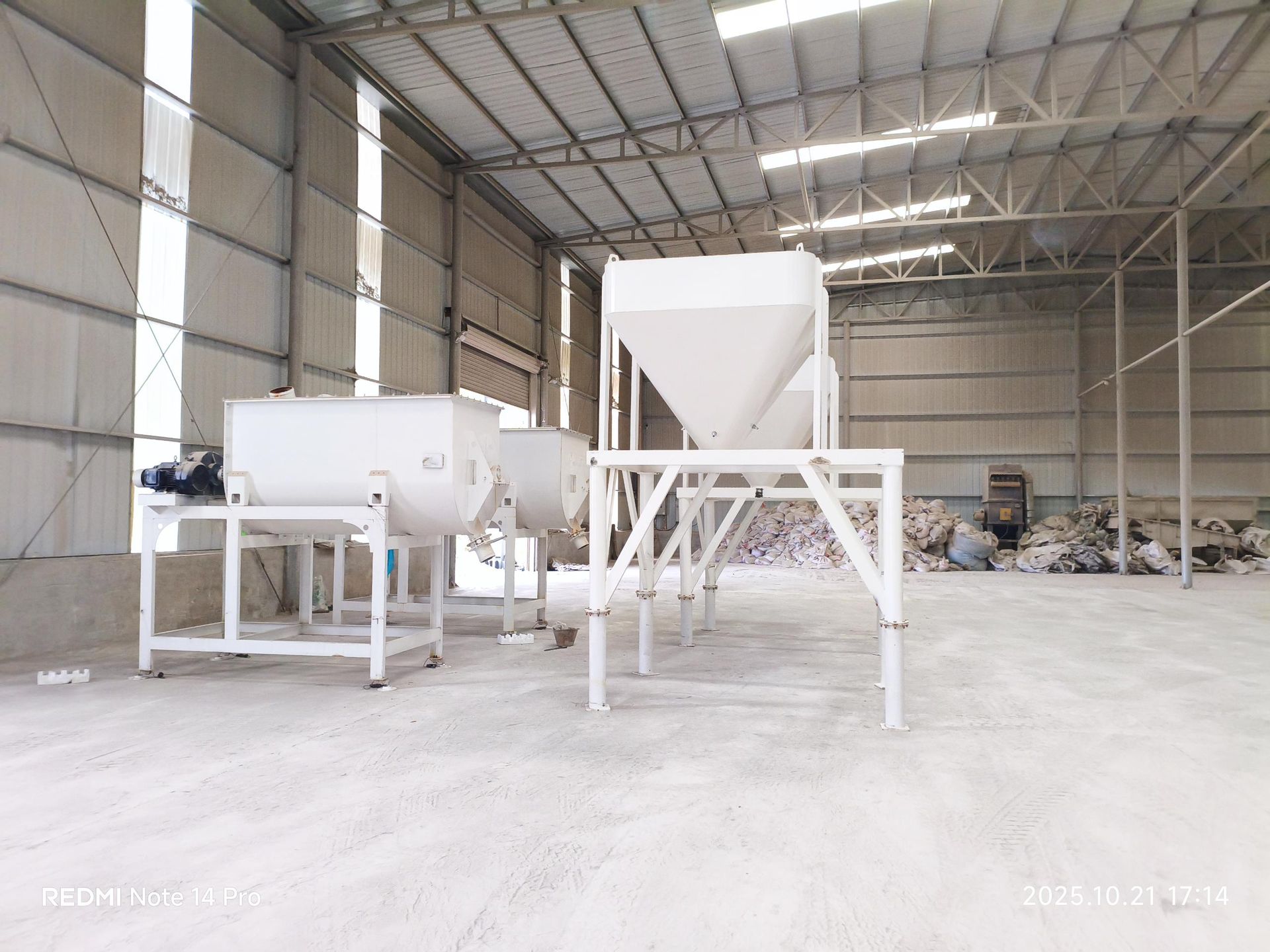

Small dry mortar mixer main view
Detail / Site View

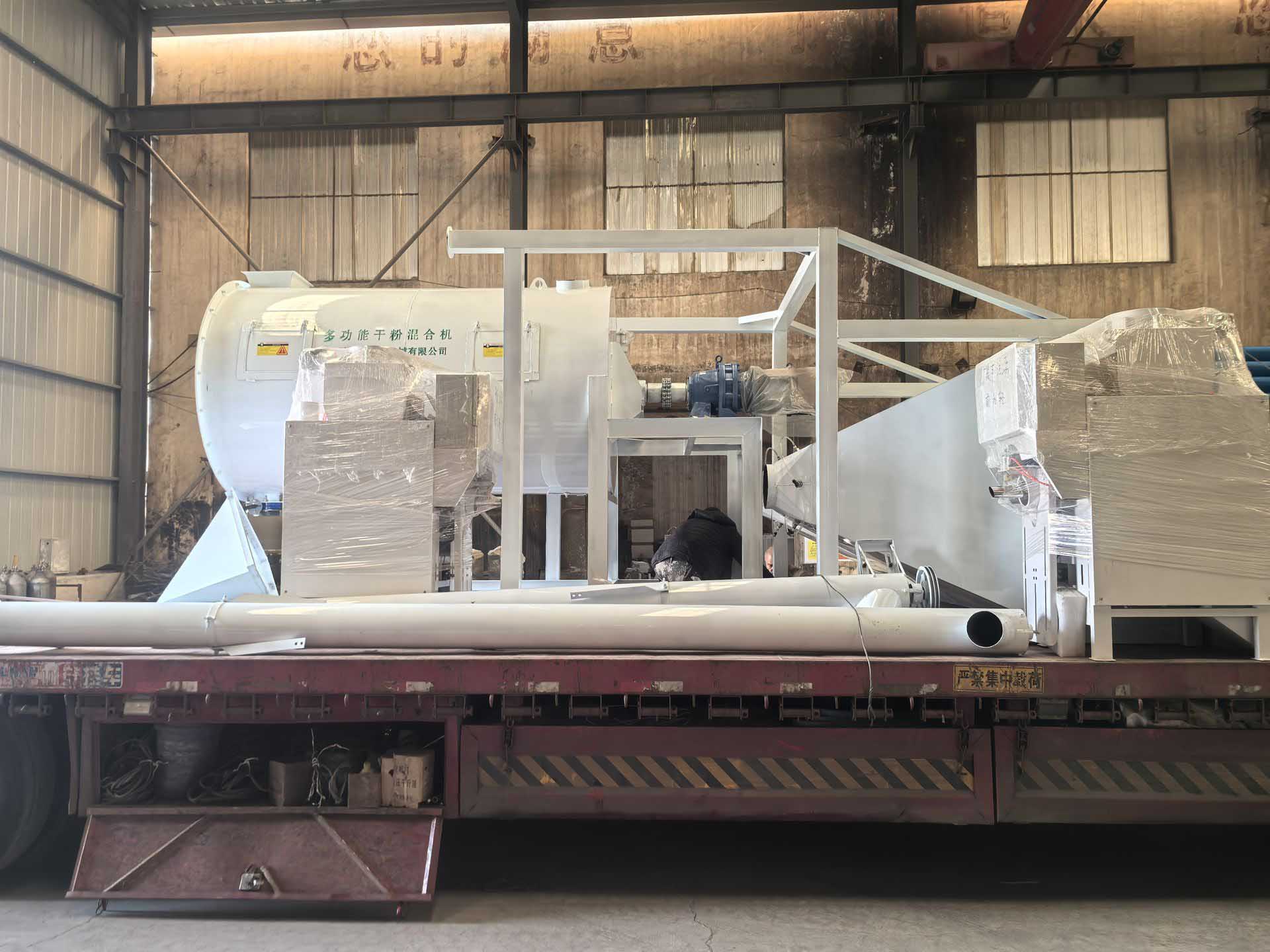

Compact mixer detail
| Selection Item | What to Confirm | Why It Matters |
|---|---|---|
| Material and formula | Powder type, density, moisture, flowability and additive sensitivity. | Different materials require different structure, sealing and dust control. |
| Capacity target | Batch size, bags per hour, air volume or connection speed. | Capacity decides model size and whether auxiliary equipment is needed. |
| Connection points | Feeding height, discharge height, upstream and downstream machines. | Correct connection prevents bottlenecks after installation. |
| Control requirement | Standalone control, PLC signal, dust interface or safety interlock. | Controls should match the existing line or future expansion plan. |
These photos and selection points are for preliminary communication. Final layout, model and quotation should be confirmed according to your raw materials, workshop and target output.
NEO Model Reference
Model names use NEO’s own series naming. The final configuration depends on feeding method, material density and workshop layout.
| NEO Model | Recommended Batch Capacity | Mixing Power | Lifting Power | Overall Dimension | Cylinder Diameter |
|---|---|---|---|---|---|
| NEO-DMM-1000 | 1000 kg/batch | 7.5 kW | 3 kW | 3300x1050x2100 mm | x1050 |
| NEO-DMM-1500 | 1500 kg/batch | 11 kW | 3 kW | 3300x1050x2100 mm | x1050 |
| NEO-DMM-2000 | 2000 kg/batch | 15 kW | 4 kW | 3680x1200x2200 mm | x1200 |
Reference values only. DMM means Dry Mortar Mixer Machine; the number refers to recommended batch capacity in kilograms.
How It Connects to a Small Line
The mixer can be combined with feeding, packing and dust collection modules when the customer wants a complete starter line.
Feeding
Manual feeding or screw elevator feeding according to material and budget.
Mixing
Ribbon mixer blends cement, sand, filler and additives.
Discharge
Finished powder discharges to a storage hopper or packing machine.
Packing
Semi-automatic packing machine can be added for bagged mortar supply.
What We Need Before Quoting
Send these details and NEO can recommend whether you need only a mixer or a complete small production line.
- Main product and formula type.
- Expected batch capacity or daily output.
- Material density, sand condition and additive use.
- Workshop size and available height.
- Need for screw elevator, hopper, packing machine or dust collector.
FAQ
Common questions from buyers comparing a mixer and a complete small line.
Can this machine be used alone?
Yes. It can be used as a standalone mixer when feeding, discharge and packing are handled separately.
Can it be upgraded into a small production line?
Yes. NEO can add screw elevator, hopper, semi-automatic packing machine, dust collector and control cabinet according to your workshop.
Is it suitable for tile adhesive?
It can support starter tile adhesive production, but formula stability and additive dosing should be discussed before choosing the final configuration.
Can this equipment connect with my existing production line?
Usually yes. Please send the feeding height, discharge height, capacity target and control requirement so NEO can check the connection direction before quotation.
Need a compact mixer or a small line?
Send your product, capacity target and workshop size. NEO will suggest a practical equipment configuration.
