Tile Adhesive Production Line
Automated dry mix mortar plant for cement-based tile adhesive, flexible tile adhesive, and premium bonding mortar production.
Built for Stable Tile Adhesive Quality
Tile adhesive is sensitive to sand grading, HPMC/RDP dosing, mixing uniformity, and packaging moisture control. NEO configures the line around these real production risks.
Precise Additive Dosing
HPMC, RDP and functional additives can be weighed with a dedicated micro-dosing system to reduce batch inconsistency.
Uniform Mixing
Twin-shaft non-gravity mixing helps disperse cement, graded sand and chemical powders evenly within a short cycle.
Clean Packing
Valve bag packing, dust collection and optional palletizing keep the workshop cleaner and reduce manual labor.
Recommended System Configuration
A practical production line is configured by formula type, raw material condition, capacity target, and packing method.
Raw Material Storage
Cement silo, graded sand bin, additive bin and manual feeding station are selected by plant size.
Automatic Weighing
Main materials and micro-additives are weighed separately for better formula control.
High-Efficiency Mixer
Twin-shaft paddle mixer supports stable mixing for tile adhesive and other specialty mortars.
Packing & Palletizing
Valve bag packing can connect with conveyors, check weighing and automatic palletizing.
Typical Process Flow
The process can be expanded with sand drying, palletizing, bulk loading, or remote PLC support.
Sand Preparation
Dry and screen sand to match tile adhesive grading requirements.
Batching
Weigh cement, fillers, sand and additives according to formula.
Mixing
Blend all materials uniformly without damaging lightweight components.
Packing
Fill 25 kg or 50 kg bags and prepare for palletizing or container loading.
Product Photos & Selection Details
Photos help buyers understand the mixer, packing and project layout options for tile adhesive production.
Main Reference

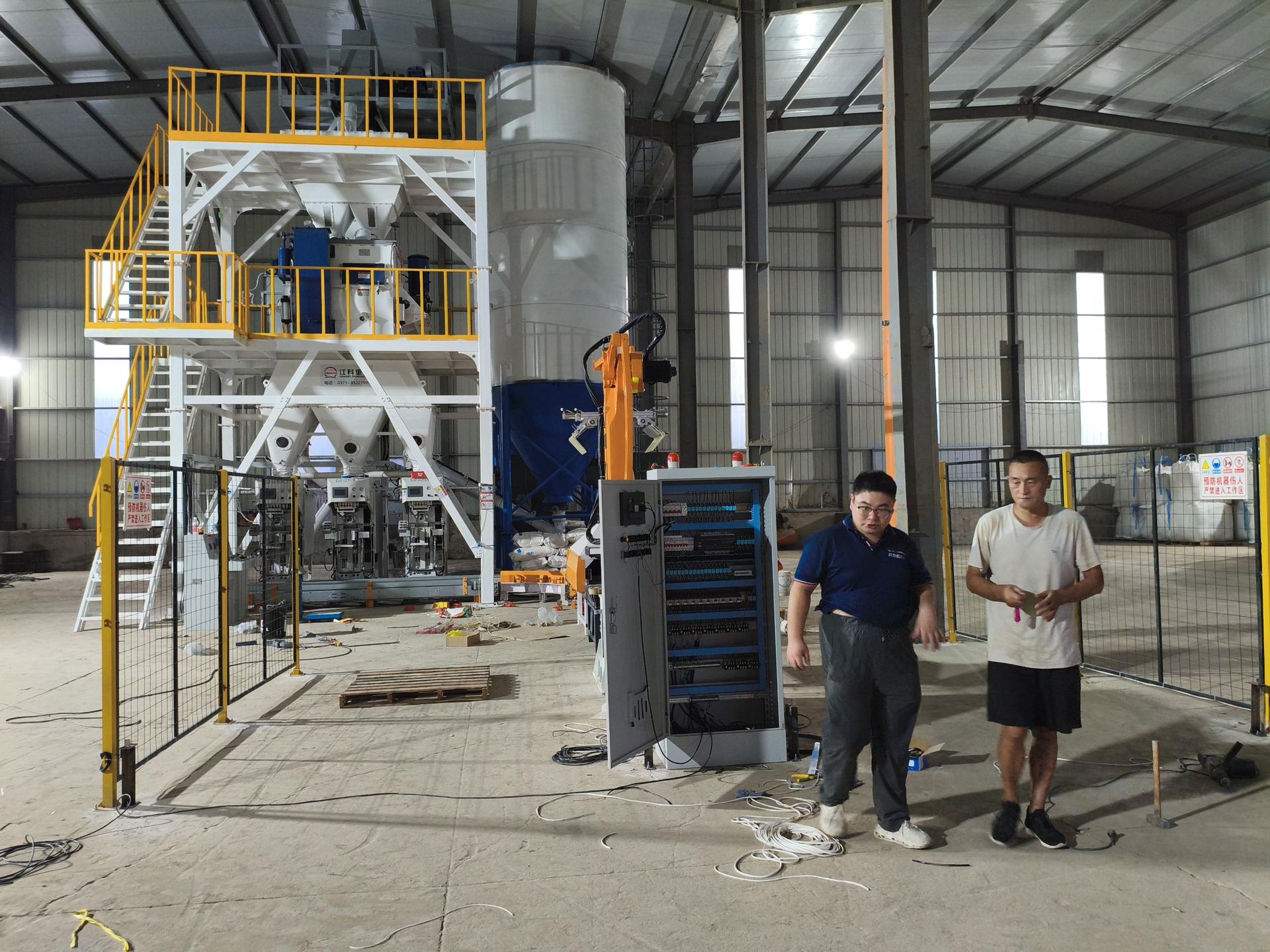

Tile adhesive line main equipment
Detail / Site View

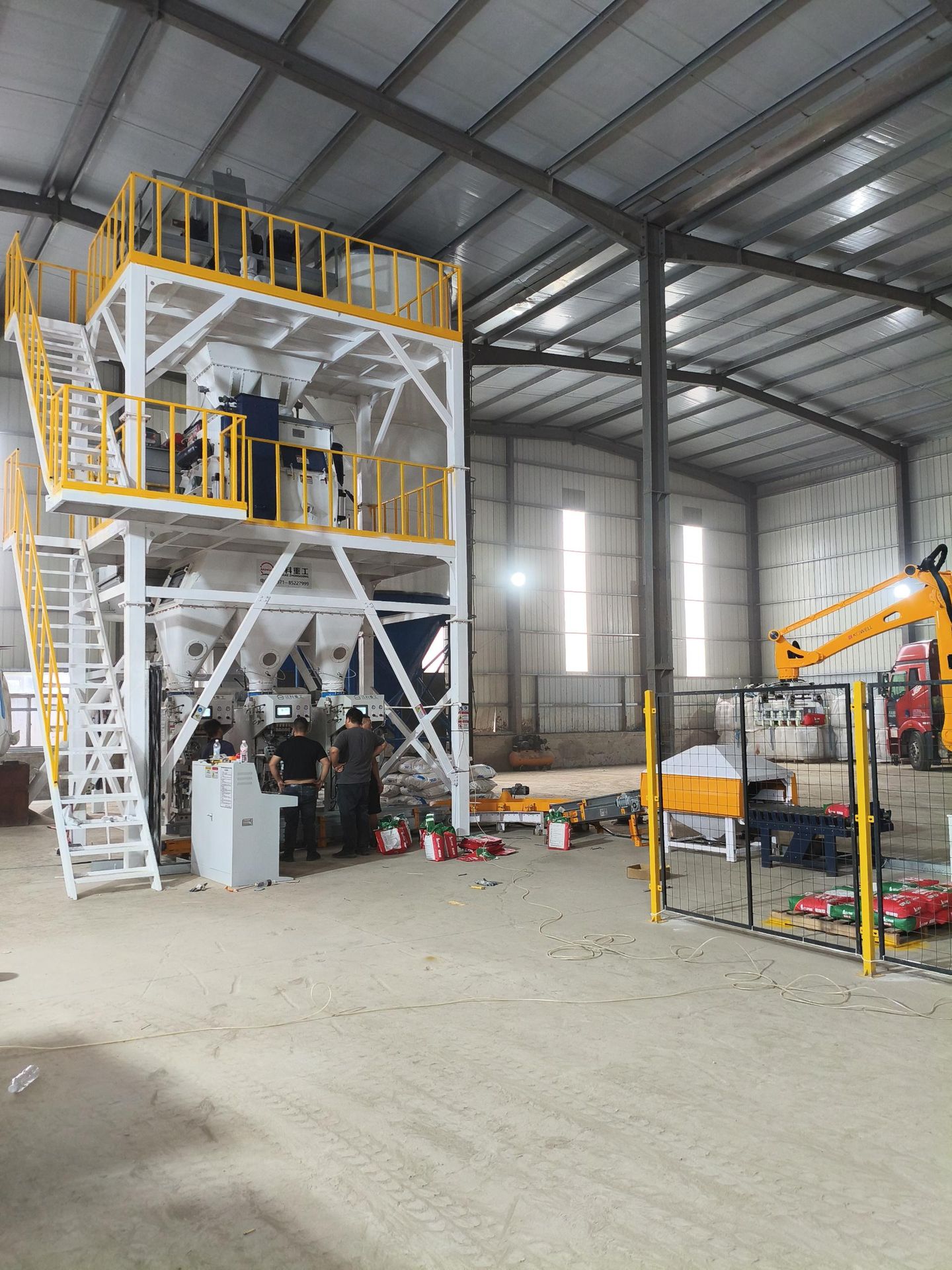

Production site reference
| Selection Item | What to Confirm | Why It Matters |
|---|---|---|
| Target products | Wall putty, tile adhesive, plaster, waterproof mortar or mixed production. | Product type decides raw material storage, mixer and packing layout. |
| Batch capacity | Expected kg per batch, tons per day and production shifts. | Capacity affects mixer volume, elevator size and packing speed. |
| Workshop size | Length, width, height, power supply and future expansion space. | Layout must fit real installation conditions, not only equipment size. |
| Automation level | Manual feeding, semi-automatic packing, automatic weighing or PLC upgrade. | Budget and labor cost decide the most practical starting configuration. |
These photos and selection points are for preliminary communication. Final layout, model and quotation should be confirmed according to your raw materials, workshop and target output.
Technical Reference
Final specifications are adjusted after confirming site layout, raw material moisture, formula, and automation requirements.
| Model | Rated Capacity | Mixer Volume | Recommended Products | Automation Level |
|---|---|---|---|---|
| NEO-05 | 5 t/h | 1.0 m³ | Starter tile adhesive / putty | Semi-auto or automatic |
| NEO-10 | 10 t/h | 2.0 m³ | Tile adhesive / skim coat | Automatic batching |
| NEO-20 | 20 t/h | 4.0 m³ | Tile adhesive / flexible mortar | Automatic line |
| NEO-30 | 30 t/h | 6.0 m³ | High-volume tile adhesive factory | Full automatic option |
Reference values only. NEO provides customized layout and configuration proposal before order confirmation.
Standard Configuration & Optional Upgrades
Use this table to compare a basic tile adhesive plant with the upgrades often required for higher automation, cleaner workshops, or more stable specialty mortar formulas.
| Production Section | Standard Configuration | Optional Upgrade | Why It Matters |
|---|---|---|---|
| Raw Material Feeding | Manual feeding station, cement silo, sand bin | Bulk bag unloading, multiple additive bins | Reduces manual feeding and supports more formulas. |
| Weighing System | Main material weighing for cement, sand and filler | Micro-additive precision weighing for HPMC/RDP | Improves batch stability for tile adhesive performance. |
| Mixing System | Twin-shaft non-gravity mixer | Formula-specific paddle and liner design | Supports uniform powder dispersion and longer service life. |
| Packing System | Valve bag packing machine | Check weighing, conveyor and automatic palletizer | Improves packing accuracy and reduces labor intensity. |
| Dust Control | Local pulse dust collector | Full dust collection at feeding, mixing and packing points | Keeps workshop cleaner and helps meet local requirements. |
| Sand Preparation | Dry sand feeding and screening by buyer | Three-pass dryer, screen and sand storage silo | Controls moisture and grading before batching. |
Reference configuration only. Final layout and equipment list should be confirmed after checking raw materials, factory space, target capacity and local labor cost.
What We Need Before Quoting
Send these details and our engineer can prepare a more realistic configuration instead of a generic price.
- Target capacity per hour or per shift.
- Main products: standard tile adhesive, flexible adhesive, wall putty or mixed production.
- Local sand condition: dry/wet sand, particle size and moisture.
- Factory size, available height, power supply and fuel condition.
- Packing method: 25 kg valve bag, 50 kg bag, bulk loading or palletizing.
FAQ
Common questions from overseas mortar manufacturers and project investors.
What is the difference between a tile adhesive line and a standard dry mortar line?
Tile adhesive normally requires more accurate chemical additive dosing and better mixing uniformity. A standard sand-cement line may not control HPMC and RDP dosing precisely enough.
Can the same line produce wall putty or waterproof mortar?
Yes, many configurations can support multiple specialty mortar formulas, but storage bins, mixer size and packing method should be planned before ordering.
Do you provide formula support?
Yes. NEO can discuss local sand, cement and additive options, then suggest a practical formula testing direction.
Can NEO adjust the configuration if my budget is limited?
Yes. NEO can start with a compact semi-automatic layout and leave space for future upgrades such as automatic weighing, better packing, palletizing or PLC control.
Planning a tile adhesive factory?
Send your capacity target, raw materials and factory dimensions. NEO will prepare a practical layout and quotation direction.
Project-ready support, not only equipment
Tell us your target product, capacity and raw material conditions. NEO will reply with a practical configuration, layout direction and quotation checklist.
Application & equipment references
For a faster quote, send us
- Target product and daily/annual capacity
- Raw material moisture, sand grading and additive plan
- Packing type: valve bag, open-mouth bag or bulk loading
- Available workshop size, power supply and destination port
Why buyers use NEO as a technical partner
- Process design matched to mortar formulation and local raw materials
- Equipment selection from drying, mixing, dosing, packing and dust collection
- Clear communication before ordering: layout, power, delivery and installation scope
- After-sales support for commissioning, formula adjustment and operator training
